    Plastic Pipe Tools Heating Plate for Plastic Pipe and Fitting Butt Welding

    Plastic Pipe Tools Heating Plate for Plastic Pipe and Fitting butt Welding


    Heating Plates (TP125,TP125/45 deg,TP160,TP200,TP300)

    ModelTP 125TP 125/45°TP 200TP 300
    Power supply230 V - Single phase - 50/60 Hz
    Working temperatureTE:180ºC-280ºC;TF 210ºC
    Ambient temperature-5º - 40ºC
    Time to reach welding temperatureTE:~ 10 min
    MaterialsTE:HDPE,PP,PVC,:TF:HDPE
    Pipe Max O.D.125mm110mm180mm280mm
    Absorbed Power700W500W1200W1300W
    Dimension140*50*410mm140*130*370mm200*50*440mm300*50*550mm
    Weight2.16 kg1.95kg3.21 kg5.09kg

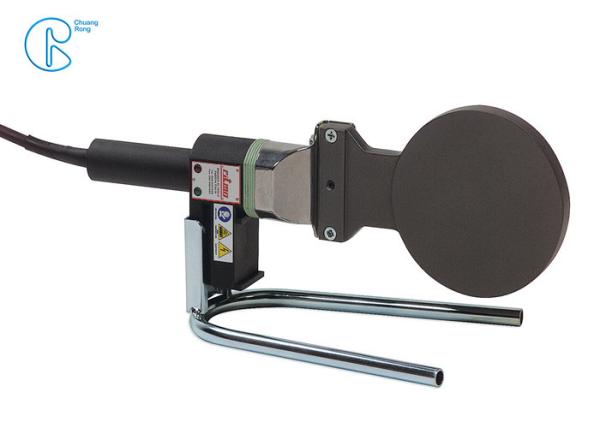

    Series of manual instruments equipped with an aluminum heating plate Teflon-coated (PTFE) and a pratical heat-insulated plastic handle. Available in two versions:one with a fixed mechanical thermostat (TF) and one with an adjustable electronic thermoregulator (TE) . The heating plates are available in different shapes and working ranges according to the operator' requirements.

    Technical Data


    -Manual equipment
    -Compact, lightweight, highly reliable
    -Different working shapes
    -Working range: Up to Ø 280 mm
    -Available with: A fixed mechanical thermostat (TF)
    -An adjustable electronic thermoregulator (TE)
    -Power supply: 110 V and 230 V

    Application



    ON REQUEST (ACCESSORIES)
    -Bench vice support (the same for all models except TP 300)
    -Transportation box in electro-painted steel
